Generate JSON payload using ABAP data using class /ui2/cl_json

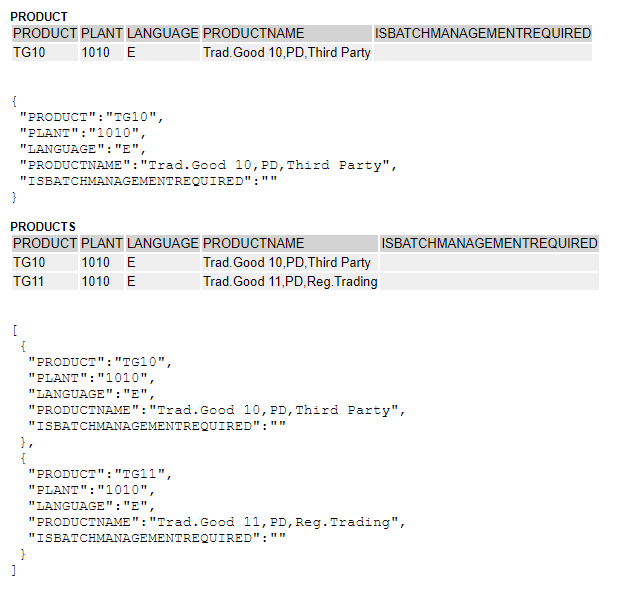

Simple call
Using call to method /ui2/cl_json=>serialize passing the data variable will generate JSON. Data could be structure or a table.
SELECT SINGLE FROM I_ProductPlantBasic
FIELDS product, plant, \_product\_text-language , \_product\_text-productname , isbatchmanagementrequired
WHERE \_product\_text-language = @sy-langu
INTO @DATA(product) .
SELECT FROM I_ProductPlantBasic
FIELDS product, plant, \_product\_text-language , \_product\_text-productname , isbatchmanagementrequired
WHERE \_product\_text-language = @sy-langu
INTO TABLE @DATA(products) UP TO 2 ROWS .
DATA(product_json_payload) = /ui2/cl_json=>serialize( EXPORTING data = product ) .
DATA(products_json_payload) = /ui2/cl_json=>serialize( EXPORTING data = products ) .
cl_demo_output=>write_data( product ) .
cl_demo_output=>write_json( json = product_json_payload ).
cl_demo_output=>write_data( products ) .
cl_demo_output=>write_json( json = products_json_payload ).
cl_demo_output=>display( ) .

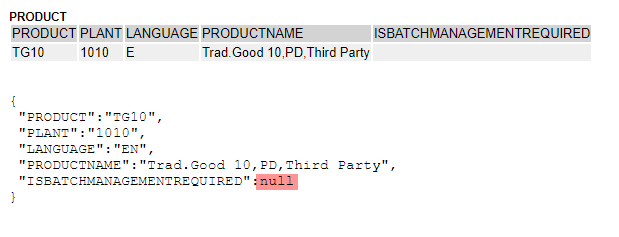

Conversion Exit
Conversion Exit can be applied for example on language field by passing parameter conversion_exits = abap_true of method /ui2/cl_json=>serialize
DATA(product_json_payload) =
/ui2/cl_json=>serialize( EXPORTING
data = product
conversion_exits = abap_true
) .
Boolean
Method /ui2/cl_json=>serialize can recognise and handle boolean values as long as they are defined properly.
| ABAP Value | JSON String |
|---|---|
| space | null |
| X | true |
| – | false |
Made some adjustments to define field isbatchmanagementrequired as boolean .
TYPES : BEGIN OF product_type ,
product TYPE I_ProductPlantBasic-product,
plant TYPE I_ProductPlantBasic-plant,
language TYPE i_producttext-language,
productname TYPE i_producttext-productname,
isbatchmanagementrequired TYPE boolean,
END OF product_type .
DATA : product TYPE product_type .
SELECT SINGLE FROM I_ProductPlantBasic
FIELDS product, plant, \_product\_text-language ,
\_product\_text-productname ,
isbatchmanagementrequired
WHERE \_product\_text-language = @sy-langu
INTO @product .
DATA(product_json_payload) = /ui2/cl_json=>serialize(
EXPORTING
data = product
conversion_exits = abap_true
) .
cl_demo_output=>write_data( product ) .
cl_demo_output=>write_json( json = product_json_payload ).
cl_demo_output=>display( ) .

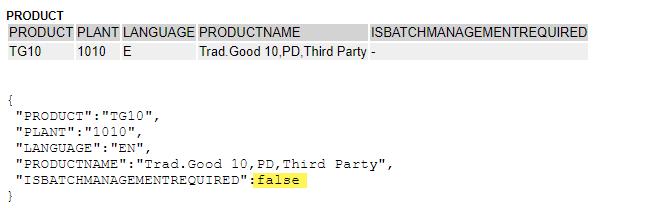

Although the above is technically right as the value from the database was space however SAP treats space as false. A slight mapping would be required to get this right (or false).
CONSTANTS : BEGIN OF boolean_value ,
true TYPE c VALUE 'X',
false TYPE c VALUE '-',
END OF boolean_value .
DATA : product TYPE product_type .
SELECT SINGLE FROM I_ProductPlantBasic
FIELDS product, plant, \_product\_text-language ,
\_product\_text-productname ,
CASE WHEN isbatchmanagementrequired = @abap_true THEN @boolean_value-true
ELSE @boolean_value-false
END AS isbatchmanagementrequired
WHERE \_product\_text-language = @sy-langu
INTO @product .
Labels
You might have noticed the method /ui2/cl_json=>serialize converted the field name to uppercase. This would probably not be desirable in the real-life APIs. Fortunately, there are few (automatic) options available with pretty_name parameter.

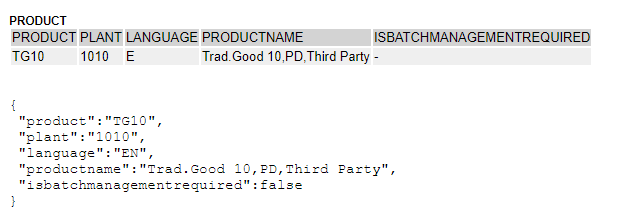

lowercase
With pretty_name = /ui2/cl_json=>pretty_mode-low_case all names are converted to lower case.
DATA(product_json_payload) =
/ui2/cl_json=>serialize(
EXPORTING
data = product
conversion_exits = abap_true
pretty_name = /ui2/cl_json=>pretty_mode-low_case
) .

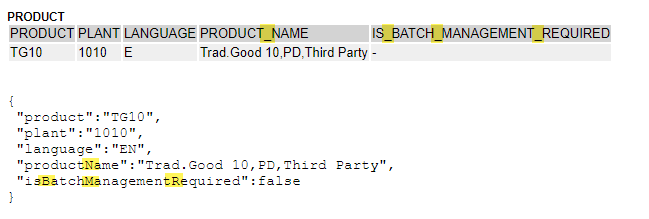

camelCase
With a small adjustment in the name of abap fields and pretty_name = /ui2/cl_json=>pretty_mode-camel_case an industry standard naming can be achieved. Notice the use of underscore in the field names.
TYPES : BEGIN OF product_type ,
product TYPE I_ProductPlantBasic-product,
plant TYPE I_ProductPlantBasic-plant,
language TYPE i_producttext-language,
product_name TYPE i_producttext-productname,
is_batch_management_required TYPE boolean,
END OF product_type .
SELECT SINGLE FROM I_ProductPlantBasic
FIELDS product, plant,
\_product\_text-language ,
\_product\_text-productname AS product_name,
CASE WHEN isbatchmanagementrequired = @abap_true THEN @boolean_value-true
ELSE @boolean_value-false
END AS is_batch_management_required
WHERE \_product\_text-language = @sy-langu
INTO @product .
DATA(product_json_payload) =
/ui2/cl_json=>serialize(
EXPORTING
data = product
conversion_exits = abap_true
pretty_name = /ui2/cl_json=>pretty_mode-camel_case
) .

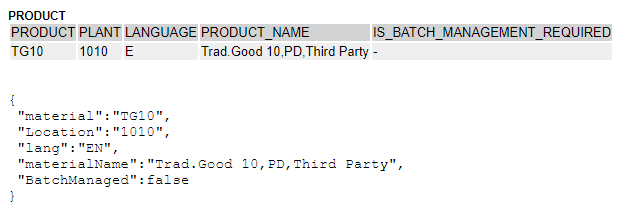

using name_mappings
Using parameter name_mappings and a mapping table of type /ui2/cl_json=>name_mappings, custom label for each field can be specified.
DATA name_mappings TYPE /ui2/cl_json=>name_mappings .
INSERT VALUE /ui2/cl_json=>name_mapping( abap = 'product' json = 'material') INTO TABLE name_mappings .
INSERT VALUE /ui2/cl_json=>name_mapping( abap = 'plant' json = 'Location') INTO TABLE name_mappings .
INSERT VALUE /ui2/cl_json=>name_mapping( abap = 'language' json = 'lang') INTO TABLE name_mappings .
INSERT VALUE /ui2/cl_json=>name_mapping( abap = 'product_name' json = 'materialName') INTO TABLE name_mappings .
INSERT VALUE /ui2/cl_json=>name_mapping( abap = 'is_batch_management_required' json = 'BatchManaged') INTO TABLE name_mappings .
DATA(product_json_payload) =
/ui2/cl_json=>serialize(
EXPORTING
data = product
conversion_exits = abap_true
name_mappings = name_mappings
) .
