Check how to add a chart in Object page of Fiori Elements List Report.
If you haven’t already then I would recommend you read my last blog CDS-Fiori Elements – Object Page Facets.
To start with, I already have Fiori Elements List Report app working based on below CDS Views. Again, if you like to know how I got to this point please my blog CDS-Fiori Elements – Object Page Facets.
Material Plant (ZI_MaterialPlantPK)
Consumption View (ZC_MaterialPK) with Annotation

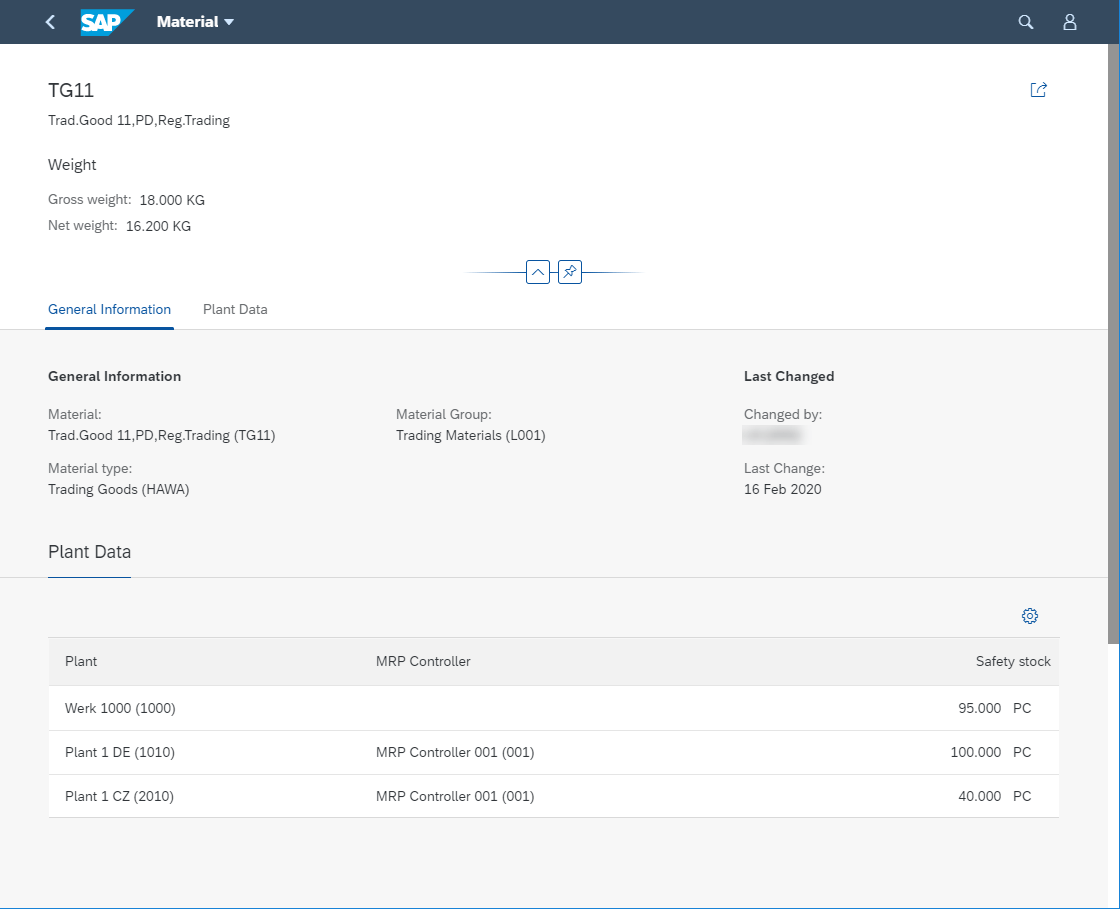

Object page with header facet, identification facet, field group facets and line item reference facet is looking like below.
To append a facet with a chart, displaying Material stock at Plant and Storage location level we need following
- CDS View (ZI_MaterialStock) with Material stock by Plant and Storage Location. This CDS view also needs to have chart defined using annotation @UI.Chart with details like what kind of chart it will render, dimension field and measure field.
- One-to-many association defined in CDS ZC_MaterialPK to CDS view (ZI_MaterialStock).
- Object page Facet to host Chart.
1. CDS View – ZI_MaterialStock with @UI.Chart
CDS View ZI_MaterialStock provides Material stock by Plant and Storage Location. It also defines annotation to render this information in a column chart.
@AbapCatalog.sqlViewName: 'ZIMATSTK'
@AbapCatalog.compiler.compareFilter: true
@AbapCatalog.preserveKey: true
@AccessControl.authorizationCheck: #CHECK
@EndUserText.label: 'Material Stock'
@UI.chart: [{
title: 'Stock by Plant and St Location',
description: 'Stock by Plant' ,
chartType: #COLUMN,
dimensions: ['Plant', 'StorageLocation'],
measures: ['UnrestrictedStock']
}]
define view ZI_MaterialStock
as select from I_MaterialUnrestrictedUseStock
{
key Material,
@ObjectModel.text.element: ['PlantName']
key Plant,
@ObjectModel.text.element: ['StorageLocationName']
key StorageLocation,
@Semantics.unitOfMeasure: true
key MaterialBaseUnit,
@Semantics.quantity.unitOfMeasure: 'MaterialBaseUnit'
@DefaultAggregation: #SUM
MatlWrhsStkQtyInMatlBaseUnit as UnrestrictedStock,
@Semantics.text: true
_Plant.PlantName,
@Semantics.text: true
_StorageLocation.StorageLocationName
}
2. Association
Define association to ZI_MaterialStock in CDS View ZC_MaterialPK and expose this association.
define view ZC_MaterialPK
as select from ZI_MaterialPK
association [0..*] to ZI_MaterialStock as _MaterialStock
on $projection.Material = _MaterialStock.Material
{
..
..
_MaterialStock
}
3. Facet: #CHART_REFERENCE
Finally, we need to place a Facet in Object page of type #CHART_REFERENCE with targetElement property pointing to exposed association _MaterialStock.
{ id : 'idChart' ,
type: #CHART_REFERENCE ,
label : 'Chart',
targetElement: '_MaterialStock',
position: 30 }
Final Version of CDS View ZC_MaterialPK
@AbapCatalog.sqlViewName: 'ZCMATPK'
@AbapCatalog.compiler.compareFilter: true
@AbapCatalog.preserveKey: true
@AccessControl.authorizationCheck: #CHECK
@EndUserText.label: 'Material Stock'
@VDM.viewType: #CONSUMPTION
@UI.headerInfo: { typeName: 'Material' ,
typeNamePlural: 'Materials' ,
title: { type: #STANDARD , value: 'Material'} ,
description: { type: #STANDARD, value: 'MaterialName' } }
@OData.publish: true
define view ZC_MaterialPK
as select from ZI_MaterialPK
association [0..*] to ZI_MaterialStock as _MaterialStock
on $projection.Material = _MaterialStock.Material
{
@UI.facet: [
{ id: 'idWeight' ,
purpose: #HEADER,
label: 'Weight' ,
type: #FIELDGROUP_REFERENCE,
targetQualifier: 'hdWeight'} ,
{ id:'idGeneralInformation' ,
type: #COLLECTION ,
label: 'General Information' ,
position: 10 } ,
{ type: #IDENTIFICATION_REFERENCE ,
label : 'General Information',
parentId: 'idGeneralInformation',
id: 'idIdentification' ,
position: 10 },
{ type: #FIELDGROUP_REFERENCE ,
label : 'Last Changed',
targetQualifier: 'fgLastChanged' ,
parentId: 'idGeneralInformation' ,
id : 'idGroupLastChanged' ,
position: 20 },
{ id: 'idLineItemMatPlant' ,
type : #LINEITEM_REFERENCE ,
label : 'Plant Data' ,
position: 20 ,
targetElement: '_MaterialPlant'} ,
{ id : 'idChart' ,
type: #CHART_REFERENCE ,
label : 'Chart',
targetElement: '_MaterialStock',
position: 30 }
]
@UI.selectionField: [{ position: 10 }]
@UI.lineItem: [{ position: 10 }]
@UI.identification: [{ position: 10 }]
@ObjectModel.text.element: ['MaterialName']
key Material,
@UI.selectionField: [{ position: 20 }]
@UI.lineItem: [{ position: 20 }]
@UI.identification: [{ position: 20 }]
@ObjectModel.text.element: ['MaterialTypeName']
MaterialType,
@UI.selectionField: [{ position: 30 }]
@UI.lineItem: [{ position: 30 }]
@UI.identification: [{ position: 30 }]
@ObjectModel.text.element: ['MaterialGroupName']
MaterialGroup,
@UI.fieldGroup: [{ qualifier: 'hdWeight' , position: 10 }]
@Semantics.quantity.unitOfMeasure: 'MaterialWeightUnit'
MaterialGrossWeight,
@UI.fieldGroup: [{ qualifier: 'hdWeight' , position: 20 }]
@Semantics.quantity.unitOfMeasure: 'MaterialWeightUnit'
MaterialNetWeight,
@Semantics.unitOfMeasure: true
MaterialWeightUnit,
@UI.fieldGroup: [{ qualifier: 'fgLastChanged' , position: 10 }]
LastChangedby,
@UI.fieldGroup: [{ qualifier: 'fgLastChanged' , position: 20 }]
LastChangedOn,
MaterialTypeName,
MaterialGroupName,
MaterialName,
_MaterialPlant,
_MaterialStock
}

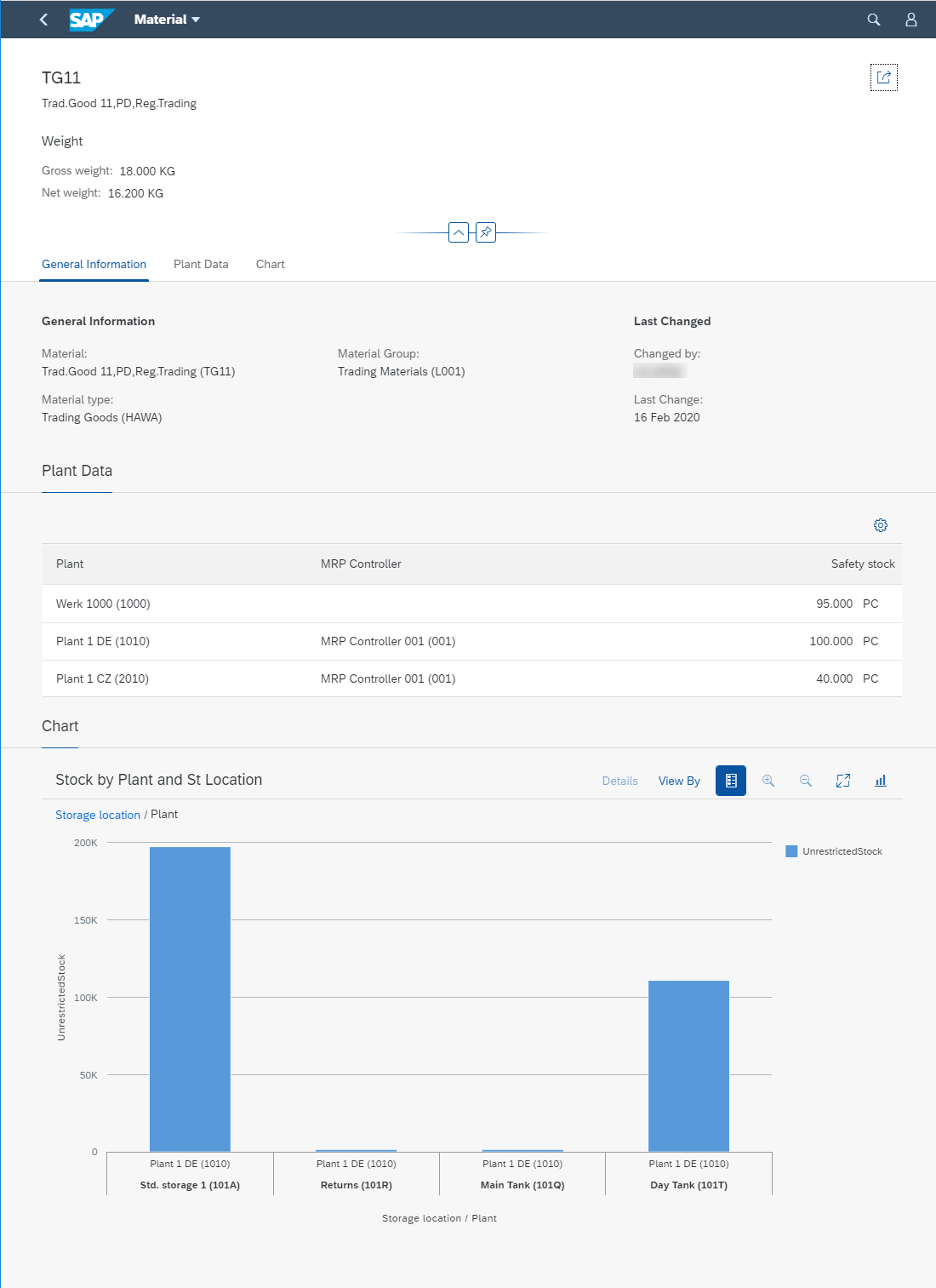

You can see below in screenshot how this chart is rendered on Object page.
