Hello World: SAP ALV with IDA

A simple example of SAP List Viewer with Integrated Data Access (ALV with IDA) using CDS views.

Create a simple CDS based on table T005 and activate it.

@AbapCatalog.sqlViewName: 'ZFLICNTRY'
@AbapCatalog.compiler.compareFilter: true
@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: 'Country'
define view ZFL_I_Country
  as select from t005
{
  key
     land1 as CountryKey,
     intca as CountryISO,
     waers as Currency
}

Hint: How to create CDS

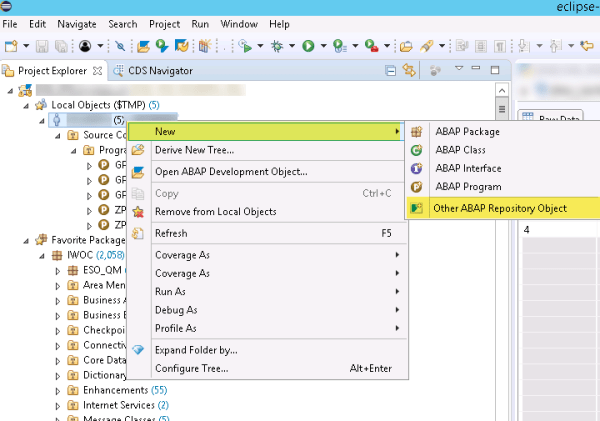

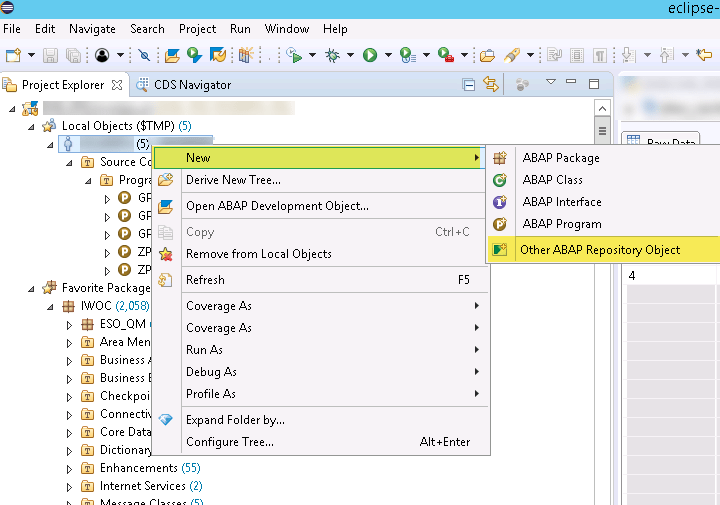

In Eclipse you can right click on $TMP package and select New->Other ABAP Repository Object

then select CDS->Data Definition

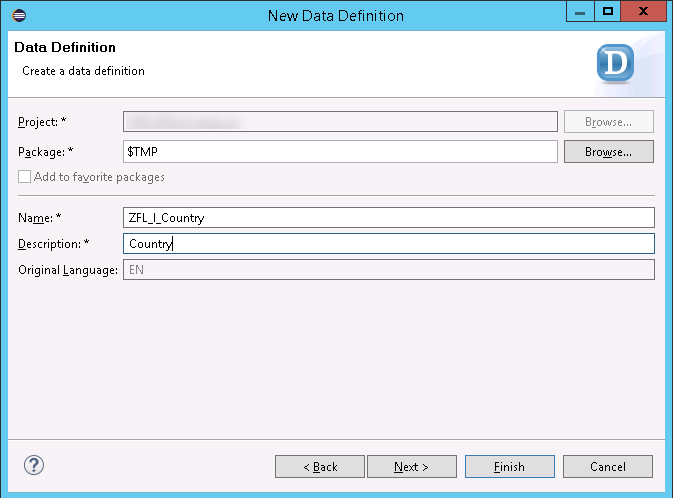

Enter Name and Description and finish. Now you can copy paste code if you like.

Now create a new executable program (SE38) with following code.

REPORT zpwtest_alv.

DATA : iv_cds_view_name     TYPE dbtabl,
       lo_alv_gui_table_ida TYPE REF TO if_salv_gui_table_ida.

START-OF-SELECTION .

  iv_cds_view_name = 'ZFL_I_COUNTRY' .

  lo_alv_gui_table_ida =   cl_salv_gui_table_ida=>create_for_cds_view(
        iv_cds_view_name      = iv_cds_view_name ).

  lo_alv_gui_table_ida->fullscreen( )->display( ) .

Class method cl_salv_gui_table_ida=>create_for_cds_view is used to call CDS and prepare ALV based on data returned.

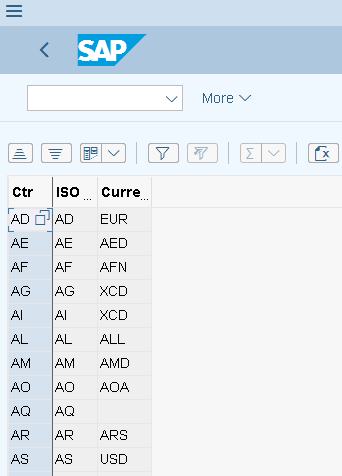

And you will get the result of CDS view in ALV when you execute.

Let spice things up a little.

In CDS view, added associations to table T005T and TCURT to get text field for country and currency. Used Annotation (the thing that starts with @) to specify column labels. Added parameter @P_LANGUAGE to specify which language to consider when retriving text for country and currency from tables T005T and TCURT.

@AbapCatalog.sqlViewName: 'ZFLICNTRY'
@AbapCatalog.compiler.compareFilter: true
@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: 'Country'
define view ZFL_I_Country
  with parameters
    @Environment.systemField: #SYSTEM_LANGUAGE
    P_Language : sylangu

  as select from t005
  association [0..1] to t005t as _TextCountry  on _TextCountry.land1 = $projection.CountryKey
  association [0..1] to tcurt as _TextCurrency on _TextCurrency.waers = $projection.Currency
{
     @EndUserText.label: 'Country'
  key
     land1                                                    as CountryKey,

     @EndUserText.label: 'Country Name'
     _TextCountry[1: spras = $parameters.P_Language ].landx50 as CountryName,

     @EndUserText.label: 'Country ISO'
     intca                                                    as CountryISO,

     @EndUserText.label: 'Currency'
     waers                                                    as Currency,

     @EndUserText.label: 'Currency Name'
     _TextCurrency[1: spras = $parameters.P_Language].ltext   as CurrencyName
}

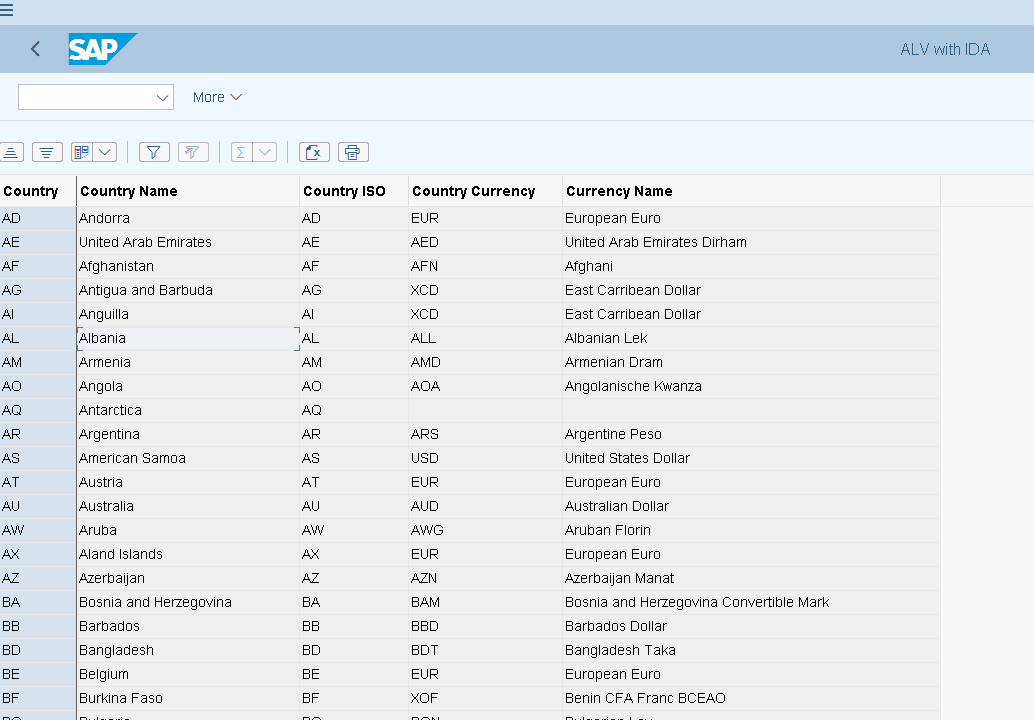

Change program to specify value of parameter P_LANGUAGE.

REPORT zpwtest_alv.

DATA : iv_cds_view_name     TYPE dbtabl,
       lo_alv_gui_table_ida TYPE REF TO if_salv_gui_table_ida,
       lt_parameters        TYPE  if_salv_gui_types_ida=>yt_parameter.


START-OF-SELECTION .

  iv_cds_view_name = 'ZFL_I_COUNTRY' .

  lo_alv_gui_table_ida =   cl_salv_gui_table_ida=>create_for_cds_view(
        iv_cds_view_name      = iv_cds_view_name ).


  lt_parameters = VALUE #( ( name = 'P_LANGUAGE' value = sy-langu ) ) .

  lo_alv_gui_table_ida->set_view_parameters( lt_parameters ) .

  lo_alv_gui_table_ida->fullscreen( )->display( ) .

Reference

You can find the following program in SAP which demonstrate IDA.

SALV_IDA_AVAILABLE_COLUMNS IDA ALV Sample: Definition of Available Columns
SALV_IDA_CALC_FIELDS_1 IDA ALV Sample: Example for Calculated fields
SALV_IDA_CALC_FIELDS_2 IDA ALV Sample: Example for Calculated fields > status
SALV_IDA_CHANGE_DATA_ELEMENT SALV IDA sample: Change technical definition via DataElement
SALV_IDA_CHANGE_TEXTS IDA ALV Sample: Change Header Texts
SALV_IDA_COMPLEX_CONDITIONS IDA ALV Sample: Selection Screen
SALV_IDA_DATA_CONDITIONS_FS IDA ALV Fullscreen: Complex Conditions
SALV_IDA_DB_CAPABILITIES IDA ALV Sample: Capabilites with DDIC table
SALV_IDA_DISPLAY_CDS_SIMPLE Display data from a CDS view
SALV_IDA_DOUBLE_CLICK_FS IDA ALV Sample: Fullscreen Double Click
SALV_IDA_SET_CURRENCY_FIELD IDA ALV Sample: Set alternative Currency Field
SALV_IDA_SET_FIXED_CURRENCY IDA ALV Sample: Set alternative Currency Field
SALV_IDA_TEST_CDS_DATATYPES SALV IDA Test for different data types
SALV_IDA_TEST_CDS_VIEW_FEATURE SALV IDA Test of CDS view features like SQL Functions, Outer
SALV_IDA_TEST_SELECT_COND_FS ALV IDA features (Integrated Data Access)
